HRL1000 სრული ელექტრო მბრუნავი ლიფტის მაგიდები

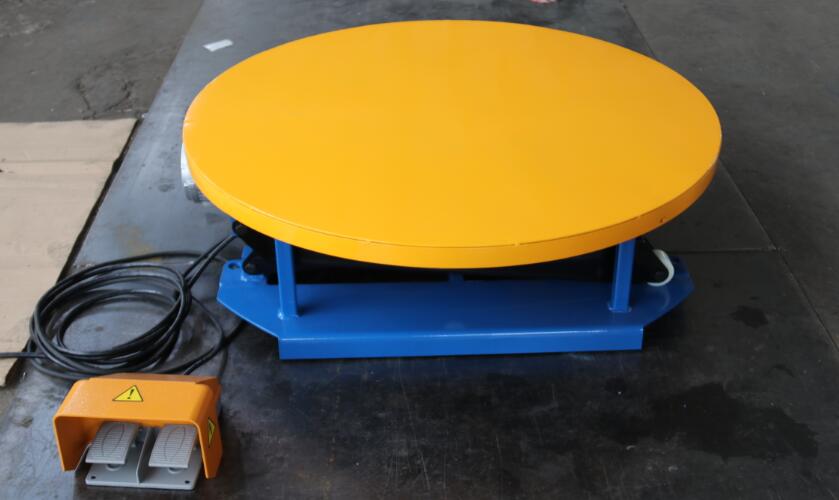

This HRL series lift table with a carousel turnable (rotating lift table) is a lift table with a rotating platform designed from the ground up with the operator in mind, placing the load where the operator determines the most comfortable working height.It doesn't matter how short or tall the individual is, since the operator determines the most comfortable working height. The Roto-Max provides complete flexibility to do the most ergonomically safe job with maximum efficiency.

The stationary scissor lift table is an electric fixed turntable that can lift or lower the rated load. The product features an integral turntable top, hand control, control cord, and power cord. Whether the load is one pound or 4400 lbs, the positioner height remains the same until the individual requests a change. With a lowered height of only 11.8", an operator has easy access to the top layer of product. The raised height is ideally suited for most applications., it can be rotated by 360 degree.

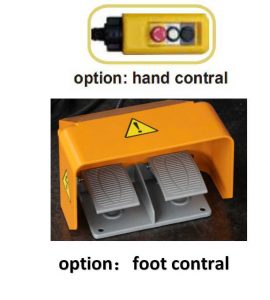

 option:hand contral or foot control for  Electric lift table with manual rotating

The stationary lift table with a carousel turntable is extra wide at the pivot point. Its contoured logs combine great strength with lower collapsed height. All pivot points have hardened pins that operate in lubricated-for-life, virtually maintenance-free bushings.

ელექტრული ჭურვის ამტვირთავი აქვს მოდელები HRL1000, HRL2000 ტევადობით 1 ტონ, 2 ტონ.

▲ i-Lift მძიმე ლითონის ფოლადის კარუსელის ტურენტი, რომელიც ეხმარება როტაციის კოლოფს, ხელი შეუწყოს გაჭიმვის შეფუთვას.

Employee გააუმჯობესეთ თანამშრომლების უსაფრთხოება ტვირთის ზუსტად გადაადგილებით კომფორტულ სამუშაო სიმაღლეზე.

▲ დაეხმარეთ პროდუქტიულობის ამაღლებას, ხოლო ხელი შეუწყოთ დაზიანებების შემცირებას მუწუკების და მიღწევების გამო.

▲ ხელის ან ფეხის კონტრასტული ვარიანტი.

Model ამ მოდელის გამოყენება შეგიძლიათ იატაკქვეშა ან იატაკქვეშა ორმოებში.

 option:hand control with electric lift&rotate function

i-lift No.13136051313606
მოდელიHRL1000HRL2000
შესაძლებლობები კგ (ლბ.)1000(2200)2000(4400)
მინ მმ (შიგნით)300(11.8)
მაქსიმუმი მმ (შიგნით)710(28)
მბრუნავი რგოლი, დიას გარეთ. მმ (შიგნით)1110(44)
ბაზის ჩარჩოს სიგრძე მმ (შიგნით)930(36.6)
ბაზის ჩარჩოს სიგანე მმ (შიგნით)920(36.2)
Წონა ნეტო კგ (ლბ.)208(457.6)217(477.4)

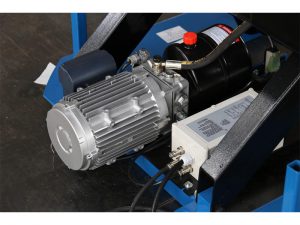

Power Pack380V / 1.1kw380V / 2.2kw
